The Rock Master™ half round end dump trailer is one of the most versatile trailers we manufacture. The half round can haul a variety of materials including dirt, gravel and rip rap. When equipped with a quarter frame and spreader apron, the half round is also an excellent dump trailer for hauling asphalt. Because our half round can be configured so many different ways, it can be used in metropolitan areas as well as gravel pits and quarries. The half round end dump trailer also features a 1/4″ AR 450 tub to withstand the constant impact the work requires. The single point suspension always keeps all eight tires on the ground during the dump cycle. The high-lift tailgate ensures the tailgate does not obstruct with material in the tub.
Standard Trailer Specifications

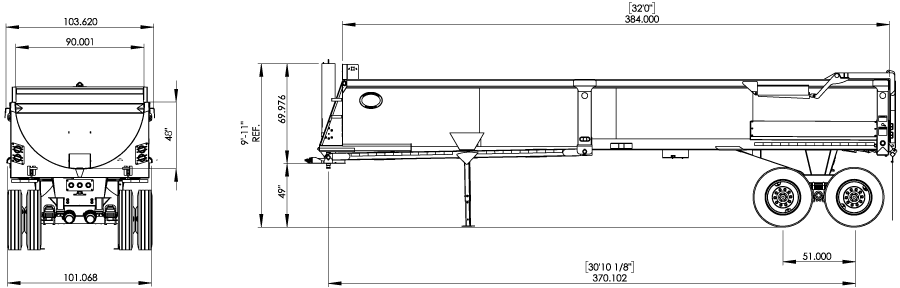

Dimensions | 32′ Length x 102″ width x 48″ Side Height |
Lighting | Standard LED Lighting |
King Pin/Coupler Height | 18″ / 49″ |
Color | White, Black or Grey |
Hoist | 8″, 5 Stage, Inverted Trunnion Mount |
Tub | 1/4″ AR 450 Wear Plate |
Nose & Gate | 3/16″ AR 450 Wear Plate |
Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
Suspension | 50,000lb. Single Point. Keeps 8 Tires on the Ground. |
Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
Fenders | Rear Aluminum Bolt-On |
Ladders | Front and Rear |
Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
Tailgate | Air-Operated Hi-Lift, Integrated Mud Flaps |
Trailer Options
Air Ride Suspension
Triple Axles
Front and Rear Lift Axle
Quarter Frame
Full Frame
Asphalt Aprons
Front Fenders
Numerous Tarps
Safety Locks
Custom Colors
Custom Lengths & Side Lengths
Spreader Chains
Numerous Wheels and Tires
Tire Carrier
Cab Kit
Tire Carrier
Double Hinge Tailgate
Additional Options Available
