Bottom Dumps
Standard Trailer Specifications
| Dimensions | 38′ Length x 72″ Side Height x 96″ Width |
| Electrical | ICC and DOT Approve Lighting System |
| Hoppers | 14 Ga |
| Color | Grey, White, or Black |
| Body | 14 GA |
| Doors | 24″ x 24″ Gate Opening |
| Axles | 25,000lb. with outboard Drums, 5/8″ Wall and Oil Seals |
| Suspension | Hutch 9700, 4 Spring, 3 Lead, 5,000lb., Tandem Axle |
| Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
| Tores/Wheels | 11R x 24.5 Steel Wheels |
| Top/Bottom Rail | T/ 4″ x 6″ x 3/16″ Tube – B/ 6″ x 3″ x 3/16″ Rectangular Tube |
| ABS Brakes | ABS 2s1m |
| Landing Gear | Drop Legs |
Trailer Options
- Measurements: 26′ – 30′ – 34′ – 38′
- Suspension: Air Ride
- Bumper: ICC Bumper
- Doors: Openings – 30″, 36″, Two Speed – Electric Lower Hopper
- Top: Steel Enclosure w/Electric Over Air Door Cover or Roll Over Top
- Miscellaneous: Vibrator & Weld On Brackets, UHMW Liner
- Tires: 11R x 22.5 – 8.25 x 24.5 Aluminum Wheels
Frac Master™ Bottom Dump Trailer Capacity
- 27 Cubic Yards
Downloads
Our cross gate belly dump provides a unique configuration compared to our standard bottom dump. Instead of the lower hopper running the length of the trailer, it runs perpendicular to the upper hopper. This allows for a wider path during the dumping process. This particular style is popular with municipalities. The cross gate bottom dump features slope sheets on the front and back as well as the extended push block.
Standard Trailer Specifications
| Dimensions | 36′ Length x 102″ width x 10’1″ Height |
| Lighting | Standard LED Lighting |
| King Pin/Coupler Height | 18″ / 49″ |
| Color | White, Black or Grey |
| Sides | 54″ Corrugated with Double Walls in Hopper Area |
| Upper Hopper | 16′ x 88″ Top Opening |
| Lower Hopper | 54″ x 70″ Hopper Opening |
| Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
| Suspension | 50,000lb. 4-Spring Tandem |
| Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
| Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
| Fenders | Front and Rear (Steel) |
Trailer Options
Air Ride Suspension
Low Profile Design
Triple Axles & Trains
Scale Systems
Parallel Spindles
Versa valve
Lift Axle
Custom Lengths
Infinite Gate
Front & Rear Lift Gate
No Slope Sheets
Custom Colors
Numerous Tarps
Numerous Tires & Wheels
Multiple Pushblock Configurations
Additional Options Available Upon Request
Cross Gate Bottom Dump Volume Capacity (Water Level)
Standard 36′ Length x 96″ Width x 10’1″ Height
22 Cubic Yards with 10″ Bang Boards
Standard Cross Gate Bottom Dump
Download

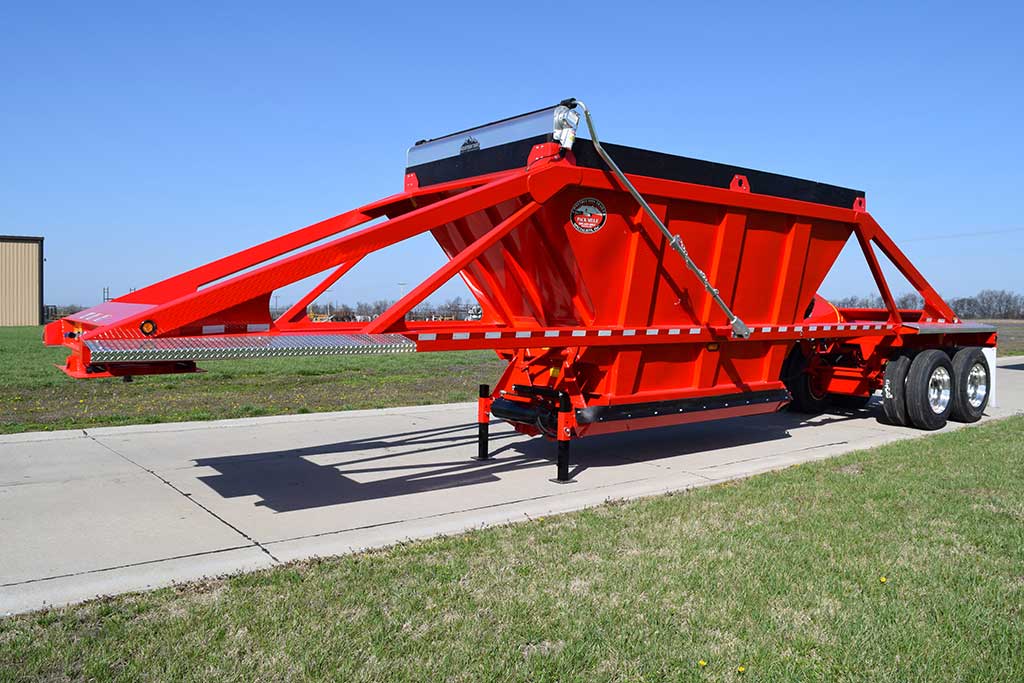

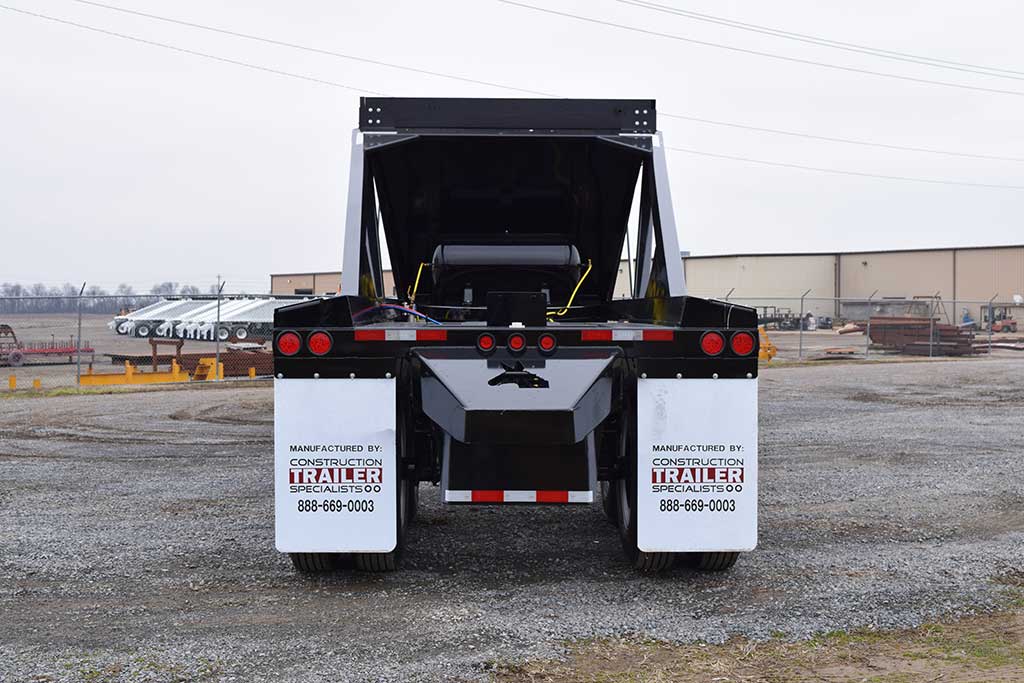

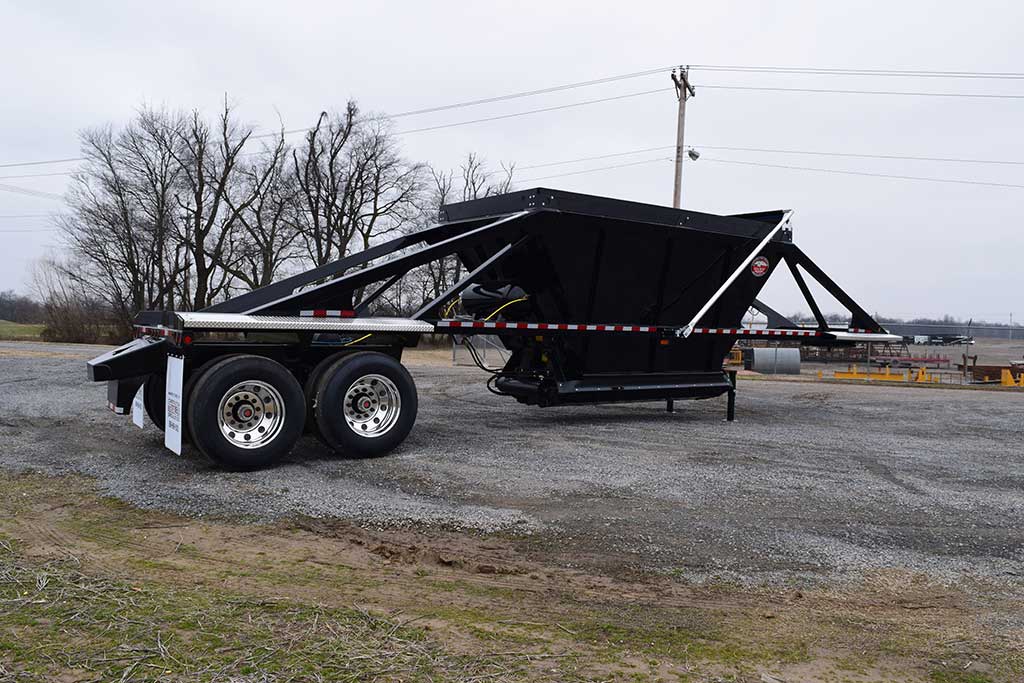

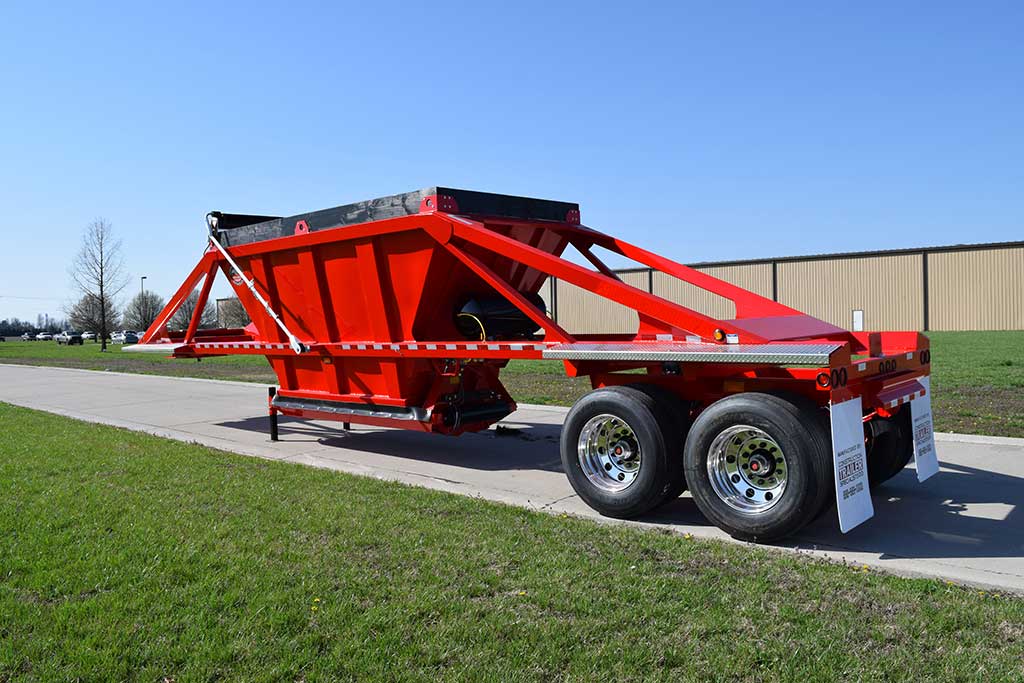

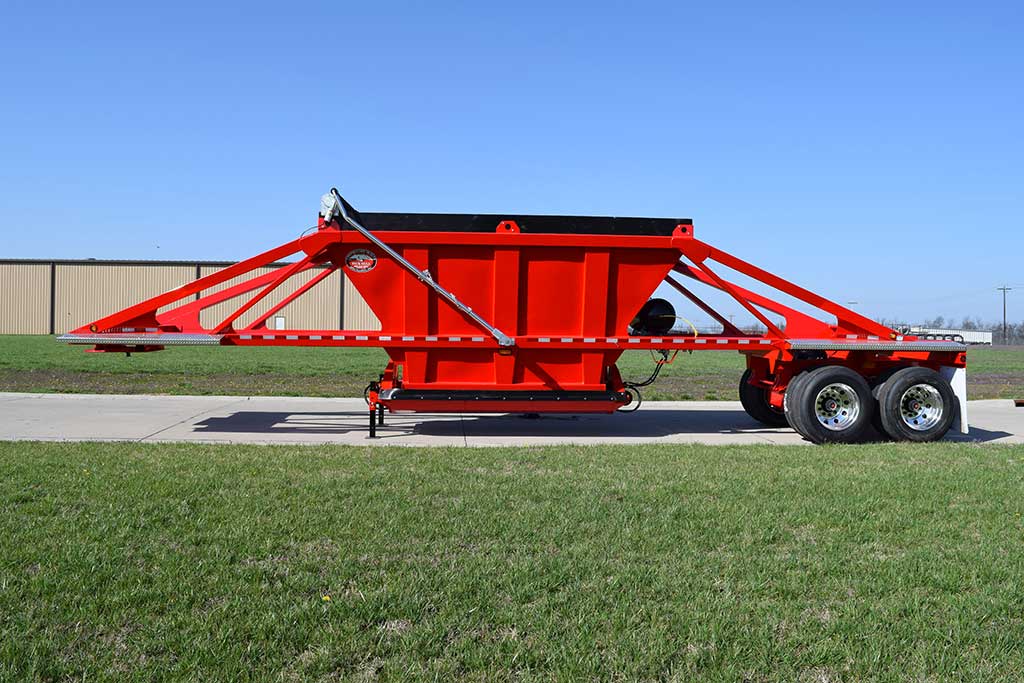

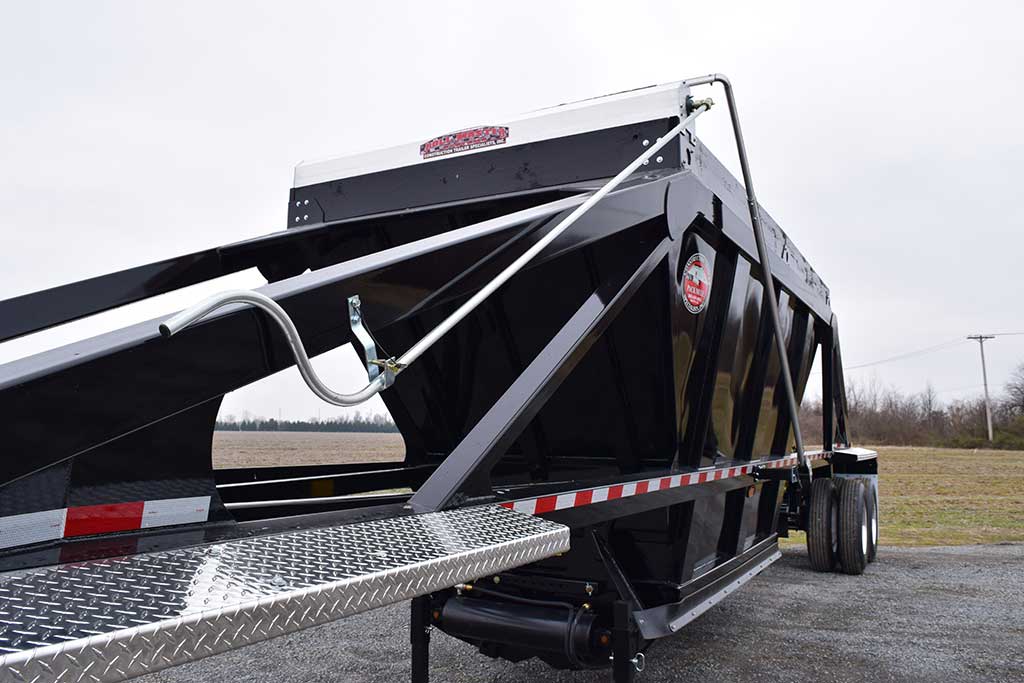

The Pack Mule bottom dump trailer is the industry leader in the belly dump market. Over many months of engineering and testing, we have been able to make significant changes to our bottom dump that combines the strength of our standard belly dump with the efficiency of the lightweight option. By replacing our steel with a lighter, higher strength steel, removing the slope sheets by replacing them with v-bracing, using aluminum front and rear fenders and using a lighter weight push block, we were able to reduce the weight of our standard bottom dump to 12,500 lbs.
| Dimensions | 40’ Length x 96” Width x 10’1” Height |
| Weight | 12,500 lbs. |
| Lighting | Standard LED Lighting |
| King Pin/Coupler Height | 18″ / 49″ |
| Color | White, Black or Grey |
| Sides | 54″ Corrugated with Double Walls in Hopper Area |
| Upper Hopper | 16′ x 88″ Top Opening |
| Lower Hopper | 54″ x 108″ Hopper Opening |
| Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
| Suspension | 50,000lb. 4-Spring Tandem |
| Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
| Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
| Fenders | Front and Rear Bolt-On (Steel) |
Trailer Options
102″ Width
Air Ride Suspension
Single Point Suspension
Low Profile Design
Triple Axles & Trains
Scale Systems
Parallel Spindles
Versa valve
Infinite Gate
Front & Rear Lift Gate
No Slope Sheets
Custom Colors
Numerous Tarps
Numerous Tires & Wheels
Removable Push Block
Bottom Dump Volume Capacity (Water Level)
Standard 40′ Length x 96″ Width x 10’1″ Height
23.5 Cubic Yards with 10″ Bang Boards
Standard Bottom Dump
