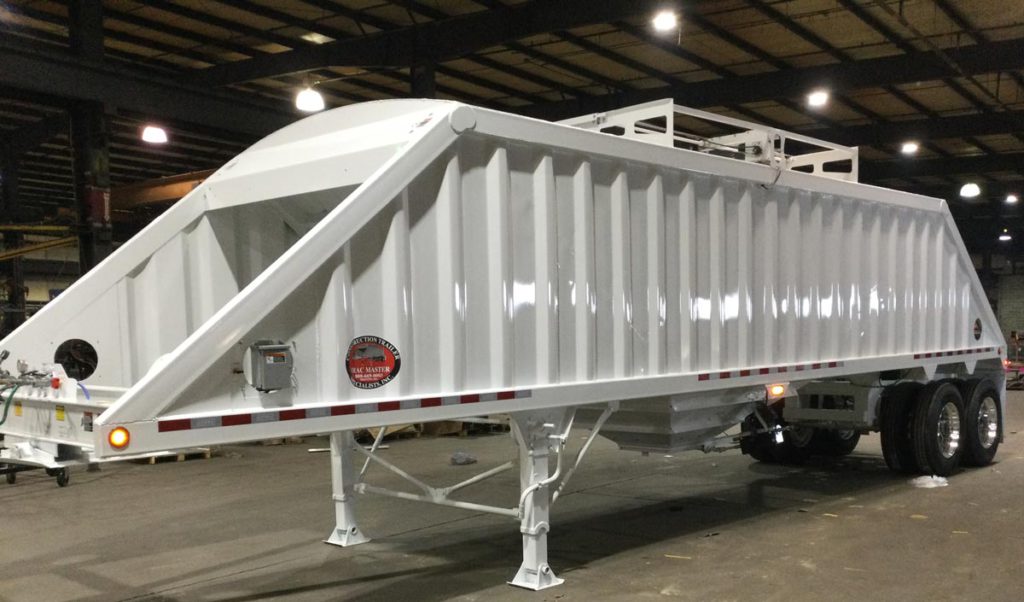

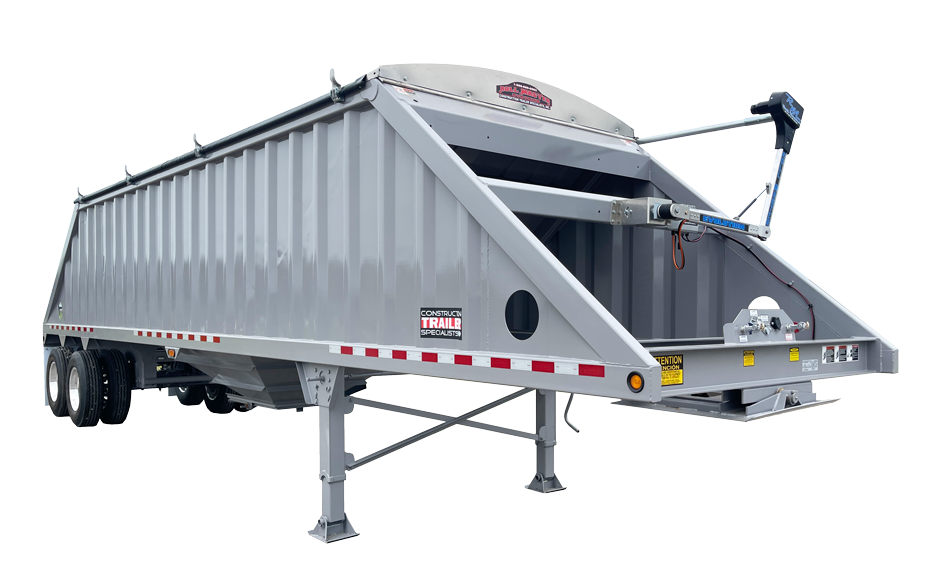

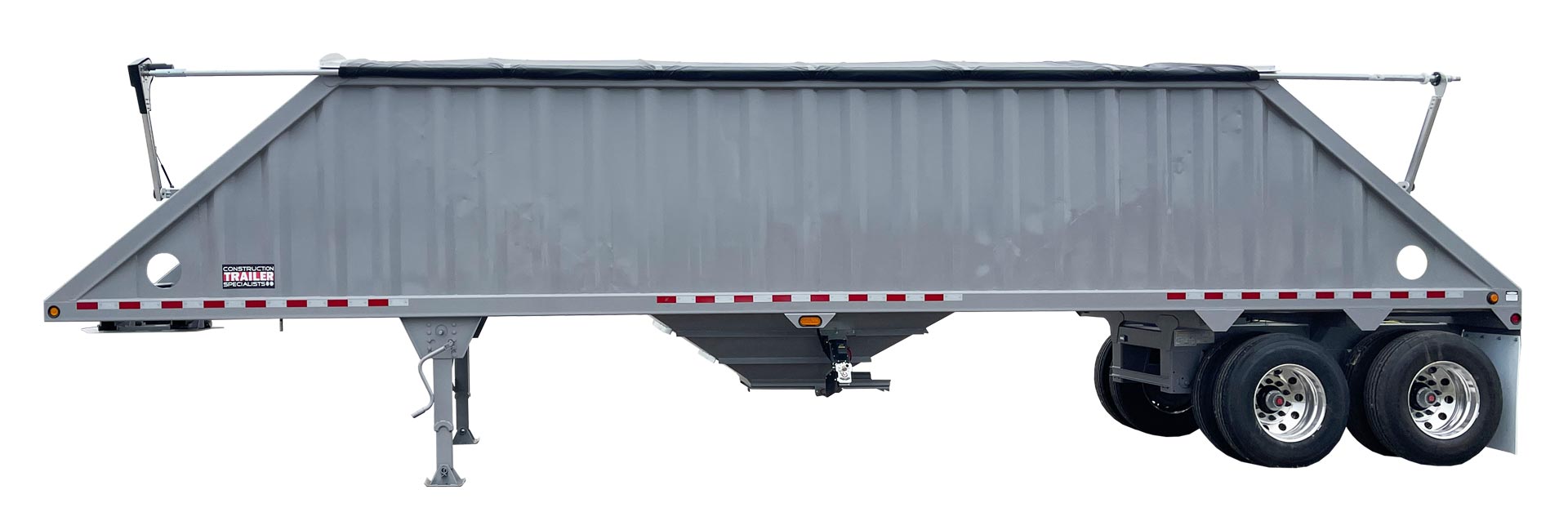

Frac Master™
The ultimate frac sand trailer.
Engineered for performance and safety.
Engineered with precision and innovation, Frac Master™ trailers redefine efficiency and reliability in the transportation of frac sand. Designed to meet the evolving needs of the industry, our sand hoppers boast state-of-the-art features that enhance loading and unloading processes, and ensuring a seamless workflow for our valued clients.
Safety is our priority. The Frac Master surpasses industry standards in protecting both cargo and operators. Integrated safety features ensure secure transport, preventing damage to the frac sand and ensuring peace of mind for our clients.
Request a Demo:
14 Gauge Steel Construction
Walking
Platform
27 Cu. Yd.
Capacity
Electric Hopper Door
Air Ride Suspension
Custom built to fit your needs.
Standard Specs:
Capacity: | 27 cubic yards |
Dimensions: | 38′ length x 72″ Side Height x 96″ Width |
Electrical: | ICC and DOT approved lighting system |
Hoppers: | Electric hopper door w/ remote control |
Colors: | Grey, white, or black |
Body: | 14 GA reinforced steel |
Axles: | 25,000 lb. without drums, 5/8″ wall and oil seals |
Suspension: | Hutch 9700, 4 spring, 3 lead, 5,000 lb., tandem axle |
Tires/Wheels: | 11R x 24.5 steel wheels |
Top/Bottom Rail: | T/ 4″ x 6″ x 3/16″ Tube — B/ 6″ x 3″ x 3/16″ rectangular tube |
Brakes: | ABS 2s1m |
Landing Gear: | Drop legs |
Doors: | 24″ x 24″ Gate Opening |
Bumper: | ICC Bumper |
Available Options:
Measurements: |
26’–30’–34’–38′ |
Doors: |
Openings – 30″, 36″, Two Speed – Electic lower hopper |
Top: |
Steel enclosure with electric over air door cover or roll over tarp |
Miscellaneous: |
Vibrator & Weld on brackets, UHMW liner |
Suspension: |
Air Ride |
Liner: |
UHMW |
Platform: |
Walking Platform & Ladder |
Landing Gear: |
2-Speed |
Tires/Wheels: |
11r x 22.5 / Aluminum wheels |
#1 in the USA
We are the #1 steel dump trailer manufacturer in the USA. For over 50 years, we’ve built our reputation on superior engineering, build quality, and after-market service. To see explore our full line of construction trailers, click here.
For pricing or more information, contact us:
