Hoppers & Peanut

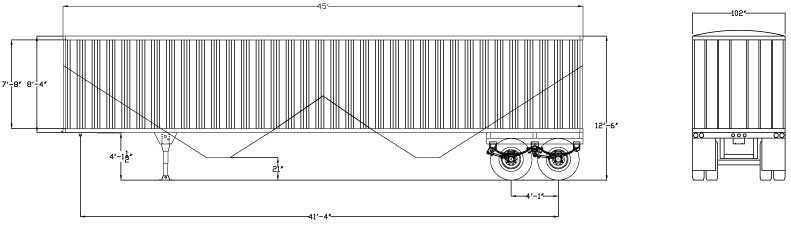

Standard Trailer Specifications
Dimensions | 45′ Length x 102″ width x 100″ Side Height |
Lighting | Standard LED Lighting |
King Pin/Coupler Height | 18″ / 49″ |
Internal Viewing | White, Black or Grey |
Sides | 14 GA, Corrugated Walls |
Suspension | 50,000 lb. 4-Spring Tandem |
Tires/Wheels | 11R X 24.5 14 Ply Radials / 10 Hole Hub Piloted Steel |
Ladders/Platform | Front and Rear |
Hoppers | (2) 14 GA, Hoppers, 36″ Openings with Baffle |
Paint | High-Gloss, Reverse-Impact, UV-Protectant, Rust-Inhibiting |
Tarp | 18 oz. Manual Roll Tarp, Removable Headers and Bows |
Landing Gear | 2-Speed |
Axles | 25,000 lb. 5″ Tubular, 5/8″ Wall |
Trailer Options
30″ Hopper Doors
Air Ride Suspension
Aluminum Wheels
Custom Colors
Hopper Work Lighting
Side Chutes
Vibrators
2-Speed Doors
Electric Doors
Alum. Ladders, Platforms
Numerous Tarp Options, Colors
Electric Landing Gear
Custom Heights/Lengths
Sloped Ends
Additional Options Available Upon Request
Undercoating
OEM 22.5 Tires
Peanut Trailer Volume Capacity (Water Level)
40′ Length x 102″ Width x 100″ Side height
2,432 Cubic Ft., 1,954 Bushel
45′ Length x 102″ Width x 100″ Side height
Straight-Sided Peanut Trailer
The Harvest Master grain trailer offers you the best quality to get the job done in the field and down the road. Over the years, we’ve had countless farmers come to us and say how much they love our grain hopper trailers because they are built to last, providing them outstanding value. The Harvest Master grain trailer features easy-to-open butterfly door cranks as well as catwalks and ladders in the front and back of the trailer. It also features sight glass windows on the driver’s side that allows one to inspect the load as it’s being poured into the hopper without climbing on top. Our manual side-to-side roll tarp is also included with the purchase of a trailer.

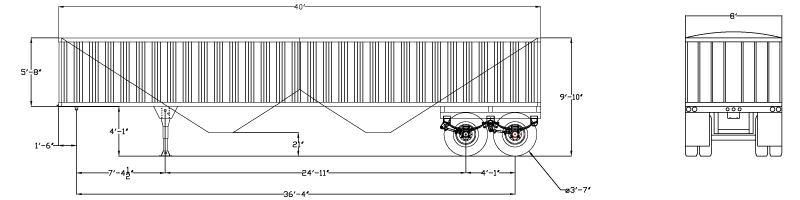

Standard Trailer Specifications
Dimensions | 40′ Length x 96″ width x 68″ Side Height |
Lighting | Standard LED Lighting |
King Pin/Coupler Height | 18″ / 49″ |
Internal Viewing | White, Black or Grey |
Sides | 14 GA, Corrugated Walls |
Suspension | 50,000 lb. 4-Spring Tandem |
Tires/Wheels | 11R X 24.5 14 Ply Radials / 10 Hole Hub Piloted Steel |
Ladders/Platform | Front and Rear |
Hoppers | (2) 14 GA, Hoppers, 24″ Openings |
Paint | High-Gloss, Reverse-Impact, UV-Protectant, Rust-Inhibiting |
Tarp | 18 oz. Manual Roll Tarp, Removable Headers and Bows |
Landing Gear | 2-Speed |
Axles | 25,000 lb. 5″ Tubular, 5/8″ Wall |
Trailer Options
30″ or 36″ Hopper Doors
Air Ride Suspension
Aluminum Wheels
Custom Colors
Hopper Work Lighting
Side Chutes
Vibrators
2-Speed Doors
Electric Doors
Alum. Ladders, Platforms
Numerous Tarp Options, Colors
Electric Landing Gear
Custom Heights/Lengths
Sloped Ends
Additional Options Available Upon Request
Undercoating
OEM 22.5 Tires
