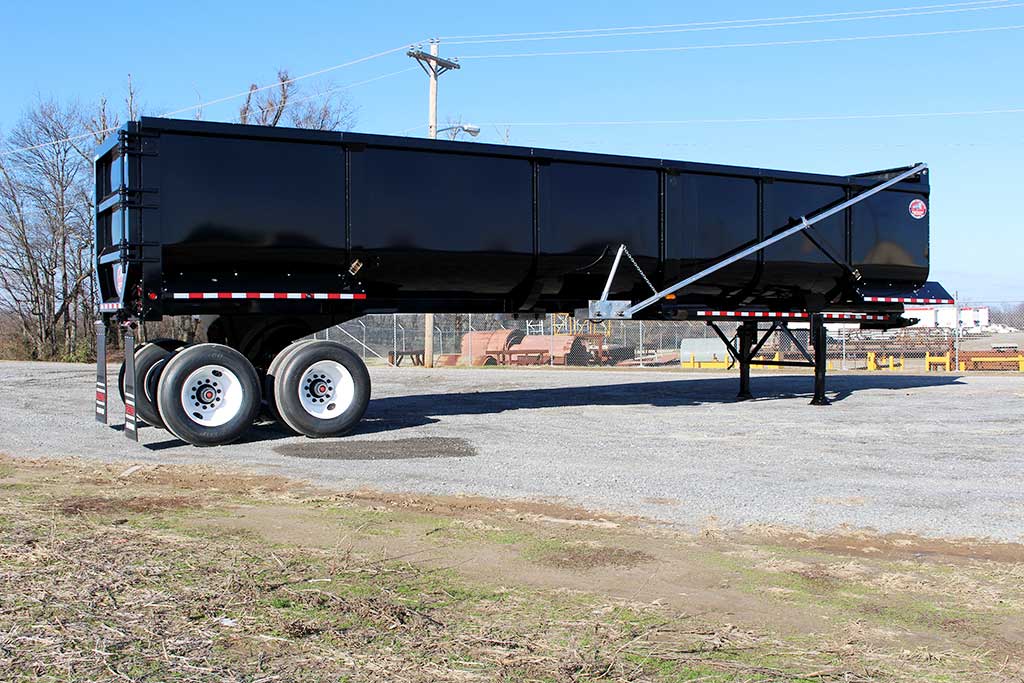

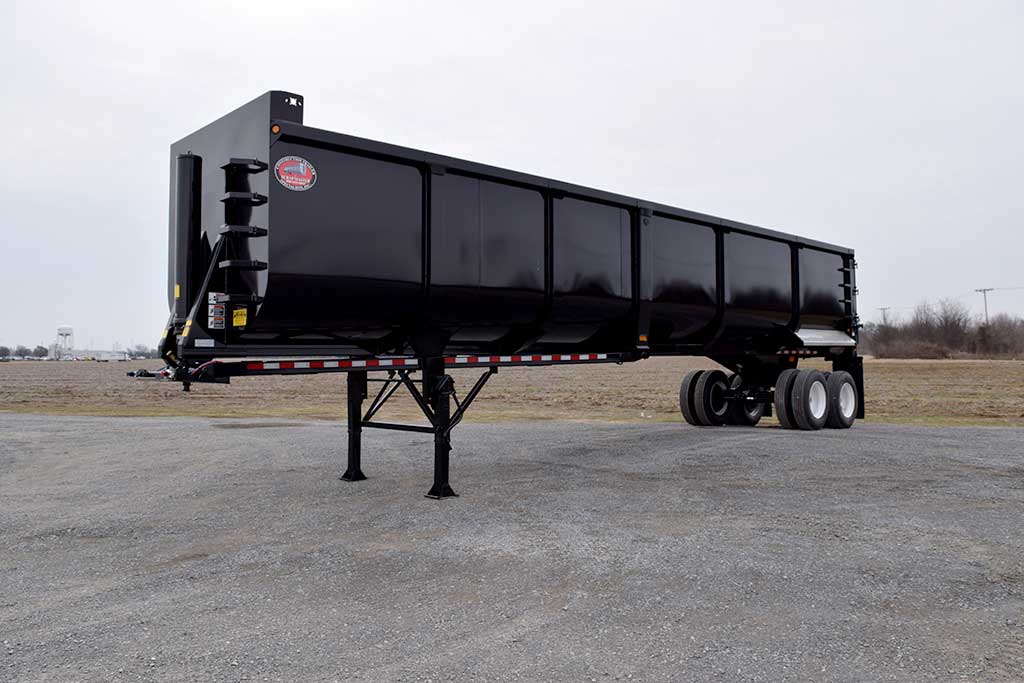

If you’re looking for a trailer with a high capacity that can handle the toughest jobs, the Scrap Master™ elliptical end dump trailer is the trailer you’re looking for! Not only is our Scrap Master™ elliptical trailer perfectly suited for scrap metal, but it can also handle construction material, rip rap and large boulders. The elliptical end dump features a 1/4″ AR 450 tub that can withstand constant use. Our unique barn door style tailgate features a rotating rear mud flap and door that sits flush with tub so there’s no obstruction with the ground at the end of the dump cycle. The Scrap Master™ is also equipped with a single point suspension that keeps all eight tires on the ground during the entire dump cycle.
Standard Trailer Specifications
Dimensions | 40′ Length x 102″ width x 76″ Side Height |
Lighting | Standard LED Lighting |
King Pin / Coupler Height | 18″ / 49″ |
Color | White, Black or Grey |
Body | 1/4″ AR 450 Wear Plate |
Nose & Gate | 3/16″ AR 450 Wear Plate |
Tailgate | Barn Door with Cam-Over-Center Air-Operated Bottom Latch and Ratchet-Operated Side Latch |
Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
Suspension | 50,000lb. Single Point. Keeps all 8 tires on the ground. |
Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
Draft Arms | 5″ x 3″ x 1/4″ Steel Tubes with 2-Speed Landing Gear |
Fenders | Rear Aluminum Bolt-On |
Capacity (40′ L) | 64.867 Cubic Yards (76” Side Height) 86.844 Cubic Yards (100” Side Height) |
Trailer Options
Air Ride Suspension

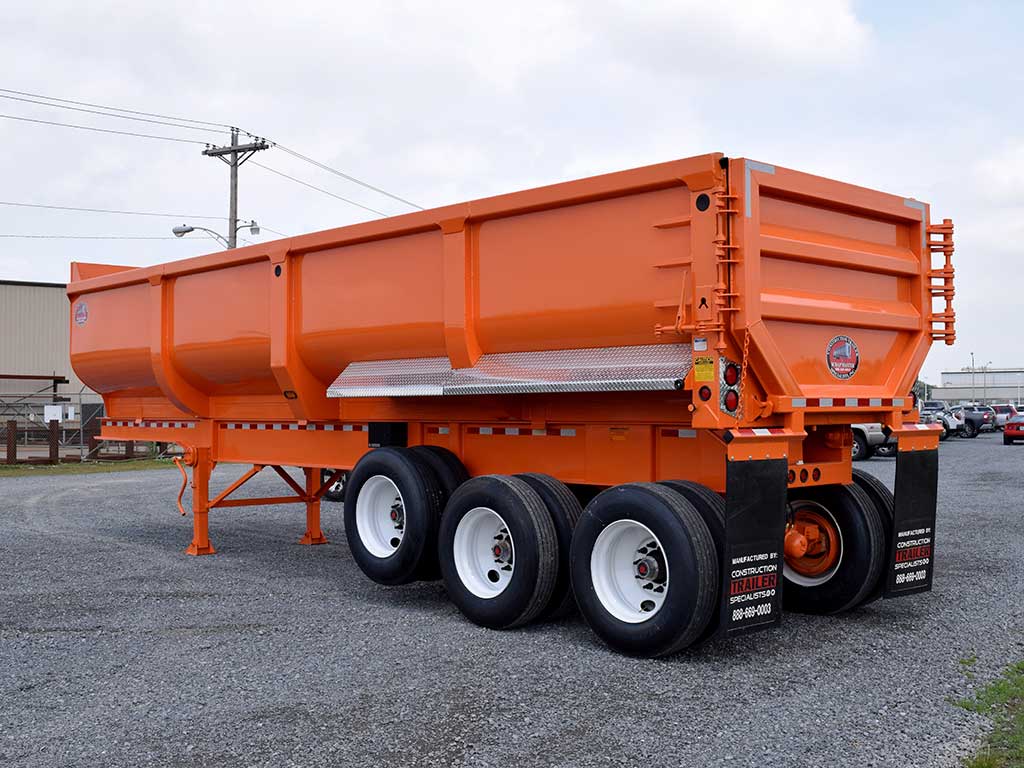

Triple Axles
Quarter Frame
Full Frame
Front Fenders
Numerous Tarp Options
Scale and Tire Inflation Systems
Air-Operated Side Latch
Custom Lengths and Side Heights
Tire Carrier
Cab Kit
Lift Axle
Top Hinge Tailgate
Dura-Light Hub and Drum
Aluminum Wheels
And More!
Elliptical Volume Capacity (Water Level)

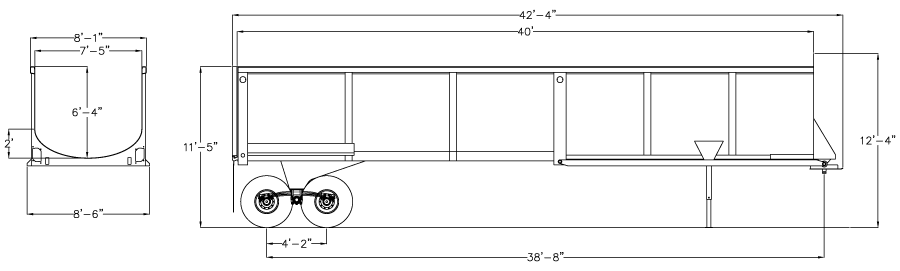

40′ Length x 102″ Width x 76″ Side Height
65 Cubic Yards
40′ Length x 102″ Width x 100″ Side Height
87 Cubic Yards
