Construction and Demolition
If you’re looking for a trailer with a high capacity that can handle the toughest jobs, the Scrap Master™ elliptical end dump trailer is the trailer you’re looking for! Not only is our Scrap Master™ elliptical trailer perfectly suited for scrap metal, but it can also handle construction material, rip rap and large boulders. The elliptical end dump features a 1/4″ AR 450 tub that can withstand constant use. Our unique barn door style tailgate features a rotating rear mud flap and door that sits flush with tub so there’s no obstruction with the ground at the end of the dump cycle. The Scrap Master™ is also equipped with a single point suspension that keeps all eight tires on the ground during the entire dump cycle.
Standard Trailer Specifications
Dimensions | 40′ Length x 102″ width x 76″ Side Height |
Lighting | Standard LED Lighting |
King Pin / Coupler Height | 18″ / 49″ |
Color | White, Black or Grey |
Body | 1/4″ AR 450 Wear Plate |
Nose & Gate | 3/16″ AR 450 Wear Plate |
Tailgate | Barn Door with Cam-Over-Center Air-Operated Bottom Latch and Ratchet-Operated Side Latch |
Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
Suspension | 50,000lb. Single Point. Keeps all 8 tires on the ground. |
Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
Draft Arms | 5″ x 3″ x 1/4″ Steel Tubes with 2-Speed Landing Gear |
Fenders | Rear Aluminum Bolt-On |
Capacity (40′ L) | 64.867 Cubic Yards (76” Side Height) 86.844 Cubic Yards (100” Side Height) |
Trailer Options
Air Ride Suspension
Triple Axles
Quarter Frame
Full Frame
Front Fenders
Numerous Tarp Options
Scale and Tire Inflation Systems
Air-Operated Side Latch
Custom Lengths and Side Heights
Tire Carrier
Cab Kit
Lift Axle
Top Hinge Tailgate
Dura-Light Hub and Drum
Aluminum Wheels
And More!
Elliptical Volume Capacity (Water Level)
40′ Length x 102″ Width x 76″ Side Height
65 Cubic Yards
40′ Length x 102″ Width x 100″ Side Height
87 Cubic Yards
Standard Elliptical End Dump

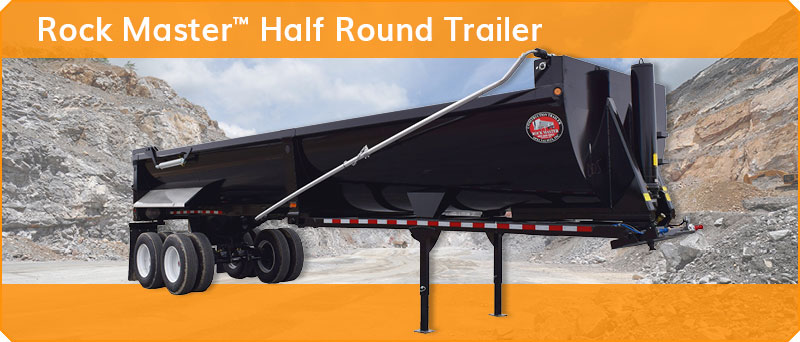

The Rock Master™ half round end dump trailer is one of the most versatile trailers we manufacture. The half round can haul a variety of materials including dirt, gravel and rip rap. When equipped with a quarter frame and spreader apron, the half round is also an excellent dump trailer for hauling asphalt. Because our half round can be configured so many different ways, it can be used in metropolitan areas as well as gravel pits and quarries. The half round end dump trailer also features a 1/4″ AR 450 tub to withstand the constant impact the work requires. The single point suspension always keeps all eight tires on the ground during the dump cycle. The high-lift tailgate ensures the tailgate does not obstruct with material in the tub.
Standard Trailer Specifications
Dimensions | 32′ Length x 102″ width x 48″ Side Height |
Lighting | Standard LED Lighting |
King Pin/Coupler Height | 18″ / 49″ |
Color | White, Black or Grey |
Hoist | 8″, 5 Stage, Inverted Trunnion Mount |
Tub | 1/4″ AR 450 Wear Plate |
Nose & Gate | 3/16″ AR 450 Wear Plate |
Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
Suspension | 50,000lb. Single Point. Keeps 8 Tires on the Ground. |
Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
Fenders | Rear Aluminum Bolt-On |
Ladders | Front and Rear |
Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
Tailgate | Air-Operated Hi-Lift, Integrated Mud Flaps |
Trailer Options
Air Ride Suspension
Triple Axles
Front and Rear Lift Axle
Quarter Frame
Full Frame
Asphalt Aprons
Front Fenders
Numerous Tarps
Safety Locks
Custom Colors
Custom Lengths & Side Lengths
Spreader Chains
Numerous Wheels and Tires
Tire Carrier
Cab Kit
Tire Carrier
Double Hinge Tailgate
Additional Options Available
Half Round Volume Capacity (Water Level)
Standard Half Round End Dump
The Sand Master™ lightweight end dump trailer is perfectly equipped to handle your sand and small aggregate needs. Most competitors’ trailers of this design require a liner in the bottom of the tub. This is not so with our lightweight end dump! Because the floor, nose and gate are made from AR 450 wear plate material, our trailer doesn’t require the liner. The three-piece tub design of the lightweight end dump is constructed of full-length sides and floor that provides great strength for the trailer. By designing this trailer without the need of a doghouse, material is allowed to flow smoothly with no obstruction. As with all our end dump trailers, the lightweight end dump features the single point suspension that keeps all eight tires on the ground during the dump cycle.
Standard Trailer Specifications
Dimensions | 37′ Length x 102″ width x 36″ Side Height (Plus 6″ Bang Boards) |
Weight | 12,400 lbs. (+/- 3%) |
Lighting | Standard LED Lighting |
King Pin/Coupler Height | 18″ / 49″ |
Color | White, Black or Grey |
Sides | 10 GA. High-Strength |
Floor/Nose/Gates | 10 GA. AR 450 Wear Plate |
Ladders | Roadside Front and Rear |
Axles | 25,000lb. 5″ Tubular , 5/8″ Wall |
Suspension | 50,000lb. Single Point |
Tires/Wheels | 11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel |
Paint | High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting |
Fenders | Rear Aluminum Bolt-On |
Trailer Options
Numerous Tarp Options
11R x 22.5 Radials
Air Ride Suspension
Aluminum Wheels
Tire Carrier
Duralight Hubs and Drum
And More!
Lightweight End Dump Volume Capacity (Water Level)
Standard 37′ Length x 102″ Width x 36″ Side Height
39.5 Cubic Yards
